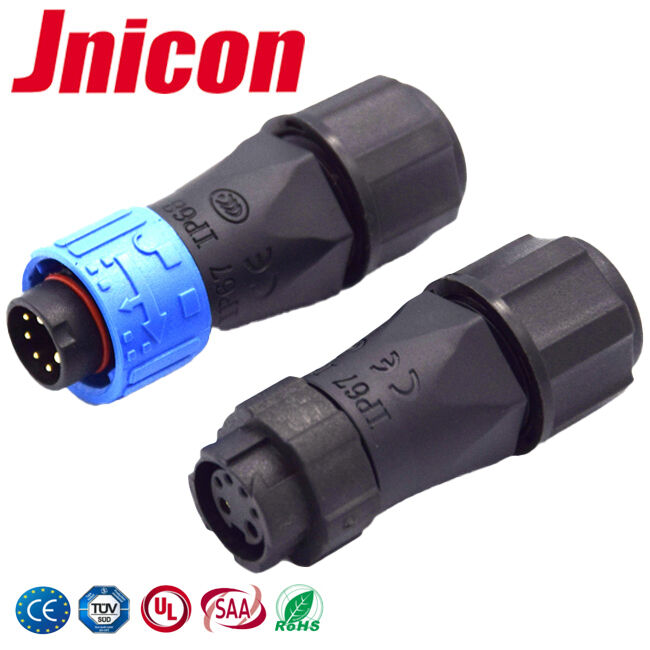

Name: 300V Electrical Multi Pin Connectors Waterproof 2+4 Pin , High-Temperature Resistant Plastic
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M16
Price: 2.20 USD
Availability: InStock

Rumah Produk Konektor Multi Pin Tahan Air

300V Electrical Multi Pin Connectors Waterproof 2+4 Pin , High-Temperature Resistant Plastic

Detail produk:

Tempat asal:	Shenzhen, Tiongkok
Nama merek:	Jnicon
Sertifikasi:	TUV,UL,CE,CCC
Nomor model:	M16

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 (10 Pasang sampel)
Kemasan rincian:	1. Kantong plastik; 2. Karton; 3. Sesuai kebutuhan pelanggan
Waktu pengiriman:	3 ~ 5 hari kerja
Syarat-syarat pembayaran:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Menyediakan kemampuan:	10.000 set/hari

Kontak

Detil Deskripsi produk

Pin Kontak:

Daya & Sinyal 2+4 Pin

Tingkat perlindungan:

IP67

Bahan:

PA66

Peringkat tahan api:

UL94-V0

Menyoroti:

300V waterproof multi pin connectors

high-temperature resistant plastic connectors

2+4 pin electrical connectors

Blue Black Color 10A Waterproof 2Pin Power Connector 4Pin Data IP67 Waterproof Connector

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

M16 6pin male plug female socket is a good connection model, widely used in LED lighting, especially in outdoor application, even underwater.

Description of 6Pin Waterpoof connnector

6 Pin Ac Power Socket
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
Industrial Electrical Plug socket
socket with cover
6 pin wire to board waterproof connector

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	10A max
Min Wire Size OD	3.0mm ~ 5.0mm
Max Wire Size OD	6.5mm ~ 9.0mm
Max.Cable Cross Section Area	0.5mm2 ~ 1.5mm2
