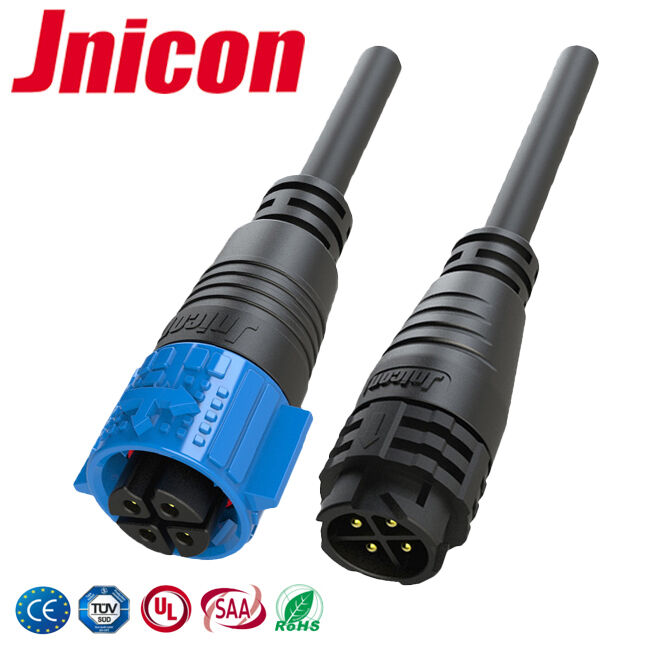

Name: M19 4Pin 20A Push Pull Cable Connectors ODM Waterproof Wire To Wire Power Connector
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M19
Price: 2.20 USD
Availability: InStock

Rumah Produk Konektor Kawat Tahan Air

M19 4Pin 20A Push Pull Cable Connectors ODM Waterproof Wire To Wire Power Connector

Detail produk:

Tempat asal:	Shenzhen Cina
Nama merek:	Jnicon
Sertifikasi:	UL,TUV,CE,ROHS,CQC
Nomor model:	M19

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 (10 Pasang sampel)
Harga:	negotiable
Kemasan rincian:	1. Kantong plastik; 2. Karton; 3. Sesuai kebutuhan pelanggan
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan:	10.000/hari

Kontak

Detil Deskripsi produk

Nama Produk:	Konektor tahan air dorong tarik M19	Fungsi:	Konduktivitas Listrik
Nilai saat ini:	20A/300V	Spesifikasi kabel:	16-12AWG
Tingkat Tahan Air:	IP67	Bahan perumahan:	Plastik tahan api
Menyoroti:	M19 waterproof wire connector , 4Pin 20A push pull connector , ODM waterproof power connector

Push Pull IP67 Waterproof Connector With 4 Pin Male Female Plug Connector

Features to 4 pin waterproof connector

Push pull locking connection mode
Protection level: IP67
Connection method: soldering(welding),screw terminal
Assembly: male plug with female plug
Certification: UL,TUV,RoHS,CQC,CE
Function : power extension
Color: black, yellow, blue.

M19 4 pin waterproof male female connector could be well used for LED lighting, power extension,Audio video, elctrical equipments, automation machines,robot, ebike, motor etc.

M19 4 pin connector specification

Specifications:
Connecting mode:	Push pull locking waterproof connector
Core number:	4 pin
Connector type :	Assembly Panel mount connector
Connector color:	Black, blue, yellow
Waterproof level:	IP67
Cable specification:	20AWG-12AWG
Cable diameter range:	4.5mm-11mm
Contact diameter*No.	Φ1.0-Φ2.4
Rated current (A):	20A
Operating voltage (AC.V.rms):	500V
Withstand voltage (AC.V)1min:	1500V

Application industries:
Stage equipment	The smart grid	LED lighting
Medical equipment	Battery	Automation
Solar energy equipment	Ship equipment	Agriculture

4 pin waterproof connector's benefits :

1. Great suitable for industrial power connection, LED fixtures, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, other places need waterproof power extension use.

2. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.

M19 4Pin 20A Push Pull Cable Connectors ODM Waterproof Wire To Wire Power Connector 0
