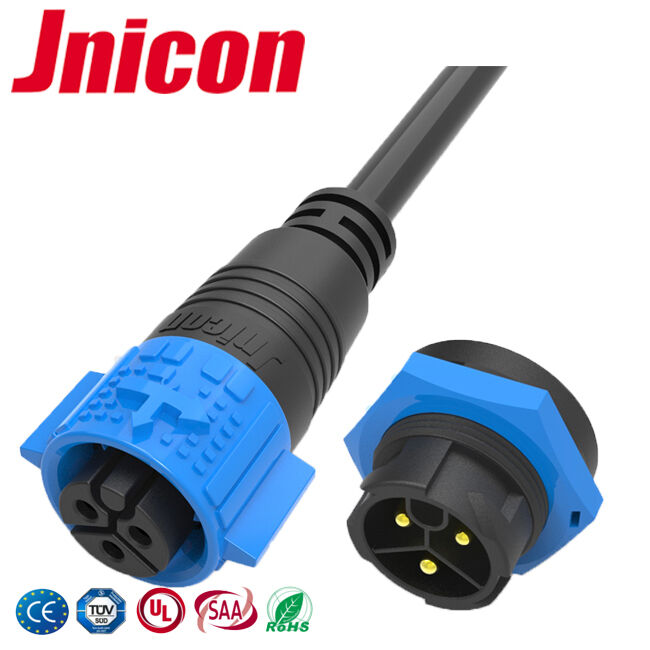

Name: M19 IP67 Solar Connectors Quick Release 3 Pin Power Connectors Waterproof
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M19
Price: 2.20 USD
Availability: InStock

Rumah Produk Konektor Pria Wanita Tahan Air

M19 IP67 Solar Connectors Quick Release 3 Pin Power Connectors Waterproof

Detail produk:

Tempat asal:	Shenzhen, Tiongkok
Nama merek:	Jnicon
Sertifikasi:	UL,TUV,CE,ROHS,CQC
Nomor model:	M19

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 (10 Pasang sampel)
Harga:	negotiable
Kemasan rincian:	1. Kantong plastik; 2. Karton; 3. Sesuai kebutuhan pelanggan
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	L/C,, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan:	10.000 set/hari

Kontak

Detil Deskripsi produk

Modus koneksi:

Konektor IP67 pengunci dorong

Tipe Konektor:

Konektor daya tipe perakitan

Spesifikasi kabel:

12AWG maks

Nilai saat ini:

20A/300V

Menyoroti:

M19 IP67 waterproof solar connectors

3 pin quick release power connectors

waterproof male female solar connector

Assembly Type 3 Pin Waterproof Circular Connector , IP67 Electric Power Plug

M19 electric waterproof connector's features :

1. Advanced structure: IP67 self locking connector

2. Multicore:2,3,4,5,6,7,8,9 to 32 pins are optional

3. Connection method: soldering(welding),screw terminal

4. Assembly: cable to cable ,male and female without cable

5. Certifications: UL, TUV, CE,ROHS,CQC.

6.Connection method: push pull locking type

Specification of M19 outdoor electric connector

Model: M19 waterproof connector
Specifications:
Connecting mode:		Push locking waterproof connector
Core number:		2 pin,3 pin,4pin and more
Connector type :		Assembly type connector
Connector color:		Black, blue, yellow
Waterproof level:		IP67 connector
Cable specification:		20AWG-12AWG
Cable diameter range:		4.5mm-11mm
Contact diameter		Φ1.0-Φ2.4
Rated current (A):		20A
Operating voltage (AC.V.rms):		500V
Withstand voltage (AC.V)1min:		1500V
Contact resistance:		<5mΩ
Insulation resistance:		>500MΩ
Durability:		≥3000 mating and unmating cycles
Temperature rating:		-40°C~105°C
Connecting mode:		Solder type/screw terminal
Flame-resistance:		UL94-V0
Material:
Shell and insulated parts:		High performance engineering plastics
Contact pin:		Copper alloy(gold-plated)
Spring:		Stainless steel
Sealing:		Silica gel
Main characteristics:
Sealed against dust and fluid (IP67/IP68)
Vibration resistance, impact resistance, stretching resistance
Dust cover available
Application industries:
Stage equipment	The smart grid		LED lighting
Solar energy equipment	Ship equipment		Agriculture
Electric power equipment	Vehicle equipment		Ebike/motorcycle
Communications equipment	Heavy machinery		Transportation

More details pictures of assembly type connector
